Bonmotwang
Well-Known Member
The short one is got compressed somehow.
Same turns, I counted.
In the 46i kit, the spring is all 03034 now.
46i is the right kit for our boat, isn't it?
Sent from my iPhone using Tapatalk
-
This site contains eBay affiliate links for which Sea-Doo Forum may be compensated.
2001 Seadoo Sportster LE. Just got it!
- Thread starter Bonmotwang
- Start date
- Status
The short one is got compressed somehow.
Same turns, I counted.
In the 46i kit, the spring is all 03034 now.
46i is the right kit for our boat, isn't it?
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
That is my understanding. Because he told me don't go there in early afternoon and don't call him early afternoon. Come late! because I need to be fg concentrate, he says.
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
What would the compressed one do to the PTO side cylinder or power.
Sent from my iPhone using Tapatalk
Sportster-2001-951C-Stock
Well-Known Member
Please correct your part numbers, they are all wrong!
Sportster-2001-951C-Stock
Well-Known Member
Assuming this spring is damaged somehow, this compressed overall length would mean the tension would be less, thus the pop pressure would be less and that carb would pop before it should. This would tend to flow more fuel and perhaps overload the crankcase with fuel during low speed maneuvers.
But it is bent as well, so the pop may be inconsistent. It might pop at 16lbs one time then pop at 19lbs another time.
Bonmotwang
Well-Known Member
Sportster-2001-951C-Stock
Well-Known Member
Those Mikuni numbers you posted are all mixed up, it should be like this:
730-03027 - 115gr
730-03027-T - 95gr
730-03033 - 80gr
730-03030 - 65gr
03034 may also be the 95gr spring P/N, I'm not sure if this number is incorrect or not (I lost some of my info during the accident).
The seadoo p/n for 95gr spring is 270500313
Bonmotwang
Well-Known Member
Sportster-2001-951C-Stock
Well-Known Member
Sportster-2001-951C-Stock
Well-Known Member
46i is the correct kit, but I'm not sure if the early 951 was "i" or 46 before the FP improvement, and the spring was not the same I think. But if the spring you received in the kit and it's silver, and it's wound the same as the photo you found, then I agree it's the 95gr spring.
The acid test is measuring pop, that will reveal the truth.
The acid test is measuring pop, that will reveal the truth.
Bonmotwang
Well-Known Member
Seadoo foruming from public library :-D
Let's have a tag line for the month: "Seadoo Anywhere" :cheers:
Hi Sportster.
Are you saying I should see some oil at the arrow pointed area?
I did see some dark liquid there. Not high for sure. But I will a stick to check depth.
View attachment 26872
Edit: by looking at the picture again. The dark area is oil. Can you judge from the picture? Is it a pass
Does this picture answer your question about the oil level?
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member

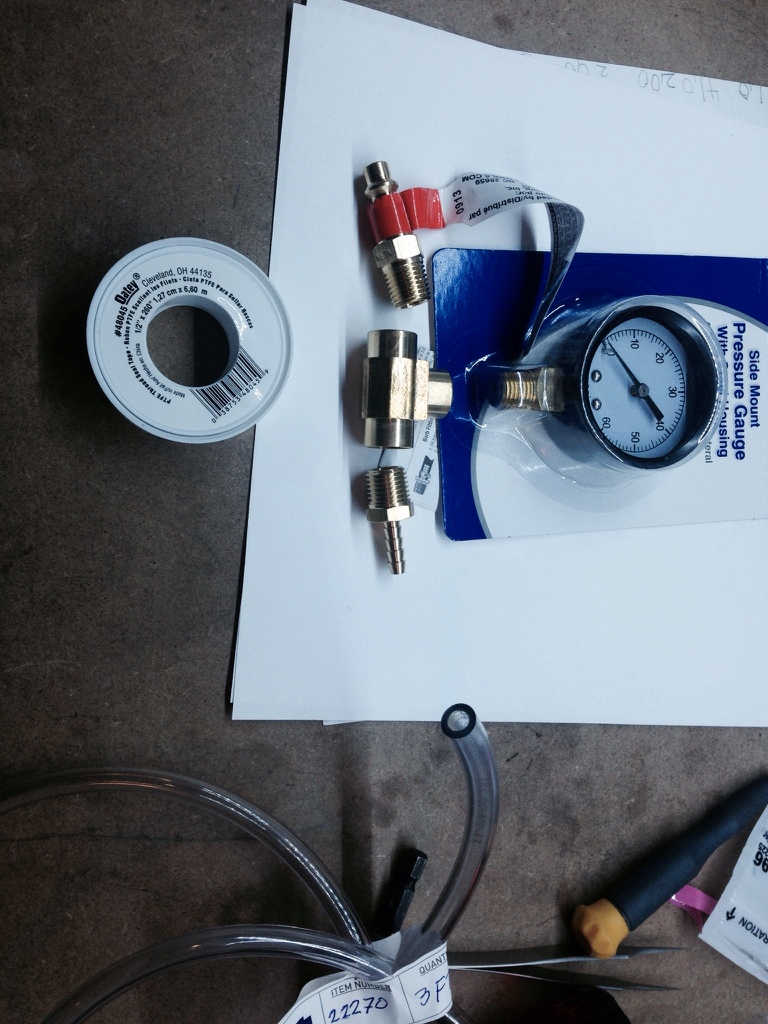

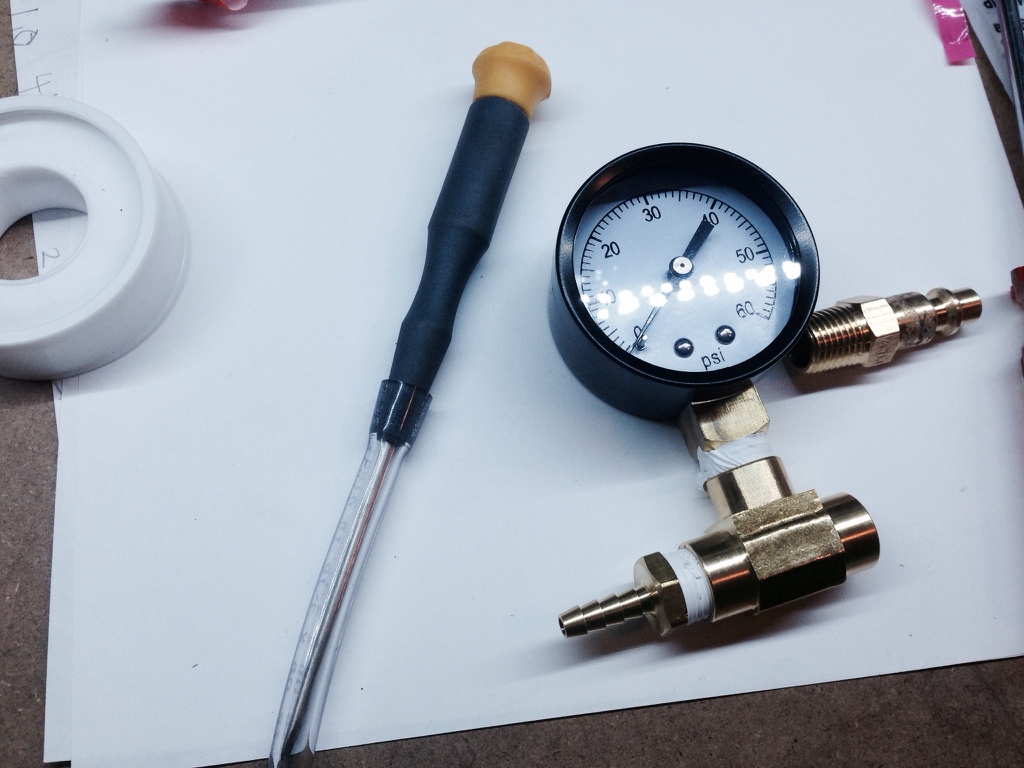

Ok, simple $28 tester: tested in hand, it will work and air flow control is easy. One trick: don't use the white tape seal the fitting port into the gauge, so that you can have extra control to slow down the pressure increase in this particular test.
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
Open the end a little with a heat gun.

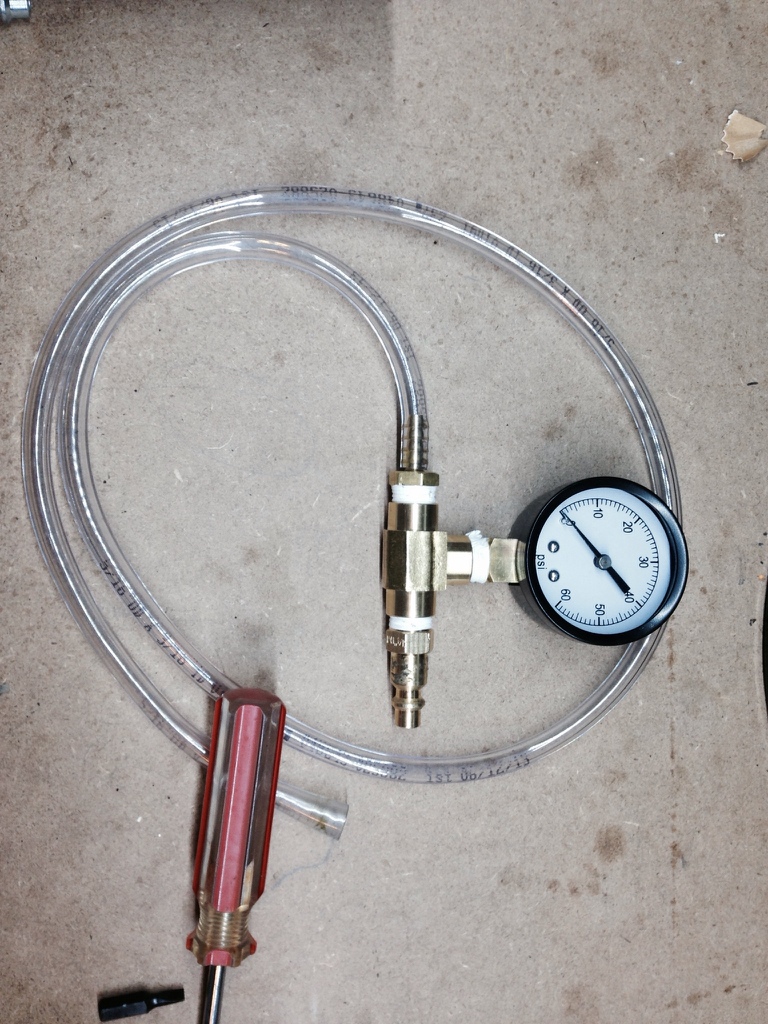

Finished product. Yes $28 dollars parts, 5 minutes labor.
[DIY Seadoo carb pop off tester]
Sent from my iPhone using Tapatalk
Finished product. Yes $28 dollars parts, 5 minutes labor.
[DIY Seadoo carb pop off tester]
Sent from my iPhone using Tapatalk
Last edited by a moderator:
Bonmotwang
Well-Known Member
Put old parts together to try. Just the needle, seat and the cover
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
I have a regular valve on the compressor, so I am good. And getting readings.
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
First time 29psi. Everything was dry.
Second time was 19psi because I didn't hold the seat with the screw.
Then I fixed everything and added WD40 into seat. Getting 15/16psi. Sometimes pops and sometime just starts to leak. But all at 15/16 Psi.
This is the compressed spring. Will try the good spring now.
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
Good spring:
1st test with lots WD40: pops at 26psi
2nd leaks at 25psi
3rd leaks at 25psi
Edit: if you want the pop effect, need to add wd40 every time. Better leak test is the same based on my data.
Sent from my iPhone using Tapatalk
1st test with lots WD40: pops at 26psi
2nd leaks at 25psi
3rd leaks at 25psi
Edit: if you want the pop effect, need to add wd40 every time. Better leak test is the same based on my data.
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
Adding wd40 every time. Now getting reading at 23.5/24.
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
So it is a little high? Spec says 19 to 23 psi
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member
Verified the defective spring: still pops at 15psi. Test been done on the PTO carb.
Moving to the MAG carb now.
Sent from my iPhone using Tapatalk
Moving to the MAG carb now.
Sent from my iPhone using Tapatalk
Bonmotwang
Well-Known Member

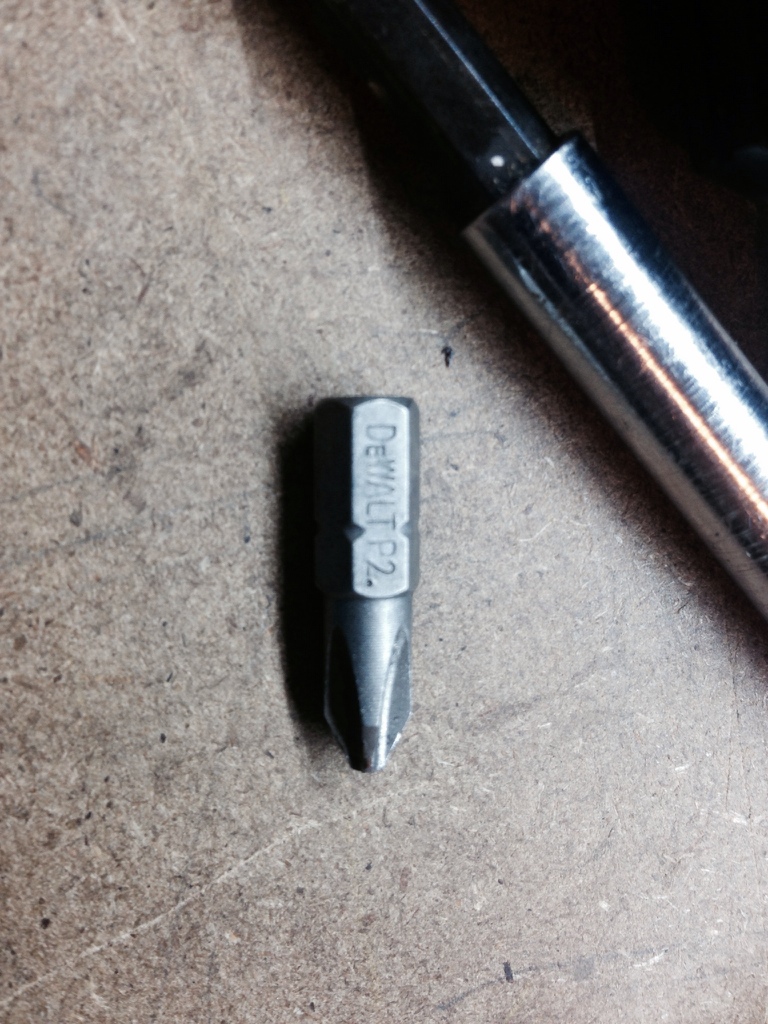

Side note for who don't have full sets of tools. This bit is perfect for all Philips in the carb.
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Waterluvr
New Member
Actually the way your testing it with that air supply and 60 PSI gauge you're likely not that far off if any. I run dual 0-30 and 0-60 psi gauges on my testers just for that purpose using a highly regulated dry air supply to run it for accuracy depending on the carb I'm working on.
It's a little overkill, so long as both carbs are in operating range and pop close to each other that's good enough. The main thing is not having any housing leaks.
