1996 Challenger Pump issues

[Walid Elbegarmy]

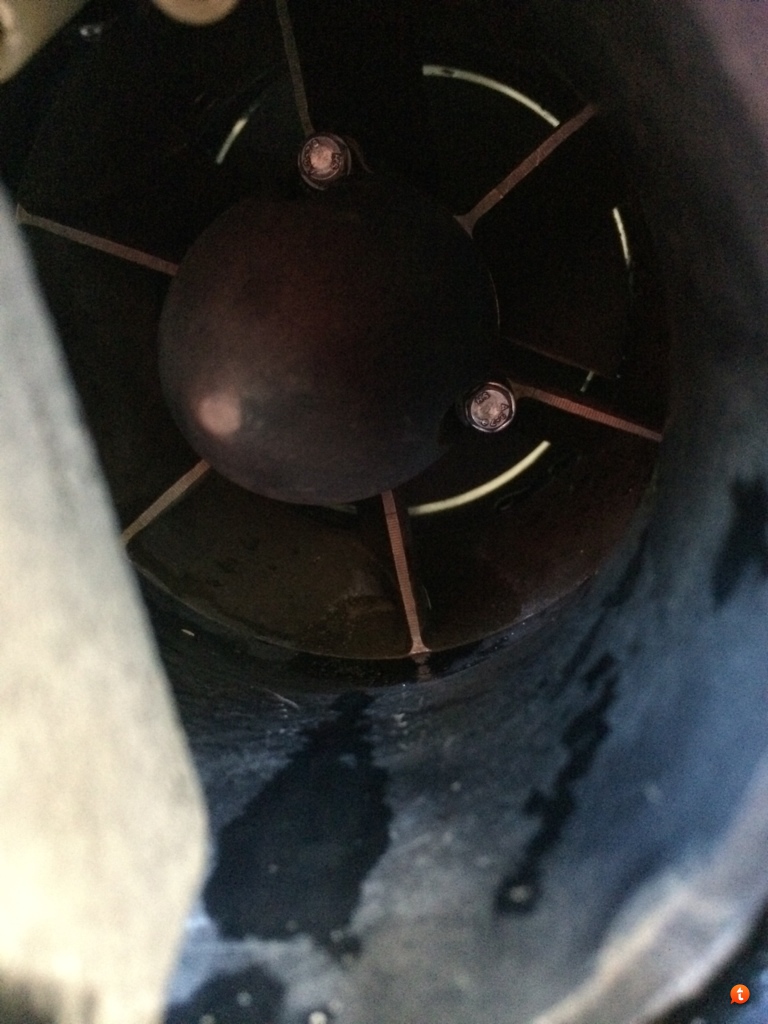

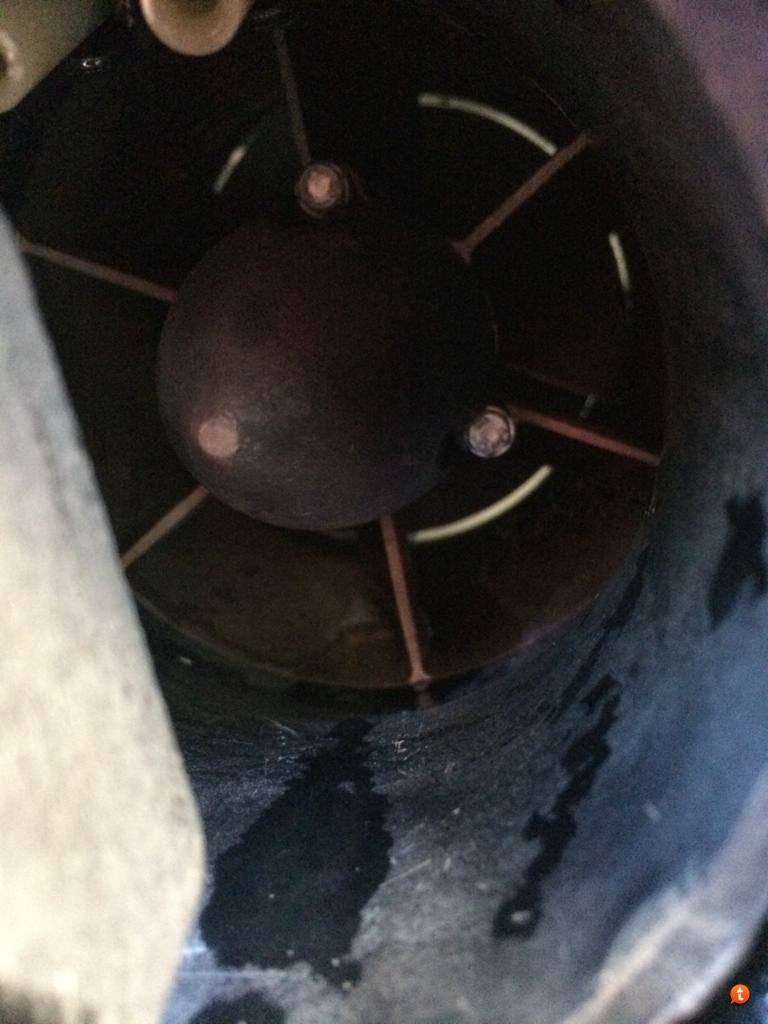

This is how my challenger pump looks like and sound like grinding something inside
https://www.youtube.com/watch?v=iE9GAS7Fbng



[Walid Elbegarmy]

Sent from my iPhone using Tapatalk



[Bonmotwang]

Could be the wear ring touching impeller.


Sent from my iPhone using Tapatalk



[USAF_Pride]

This came over from the PWC forum. You need to pull the pump to figure it out. Get a shop manual and start digging. [MENTION=68537]Bonmotwang[/MENTION] just pulled his, so he will be helpful.



[Walid Elbegarmy]

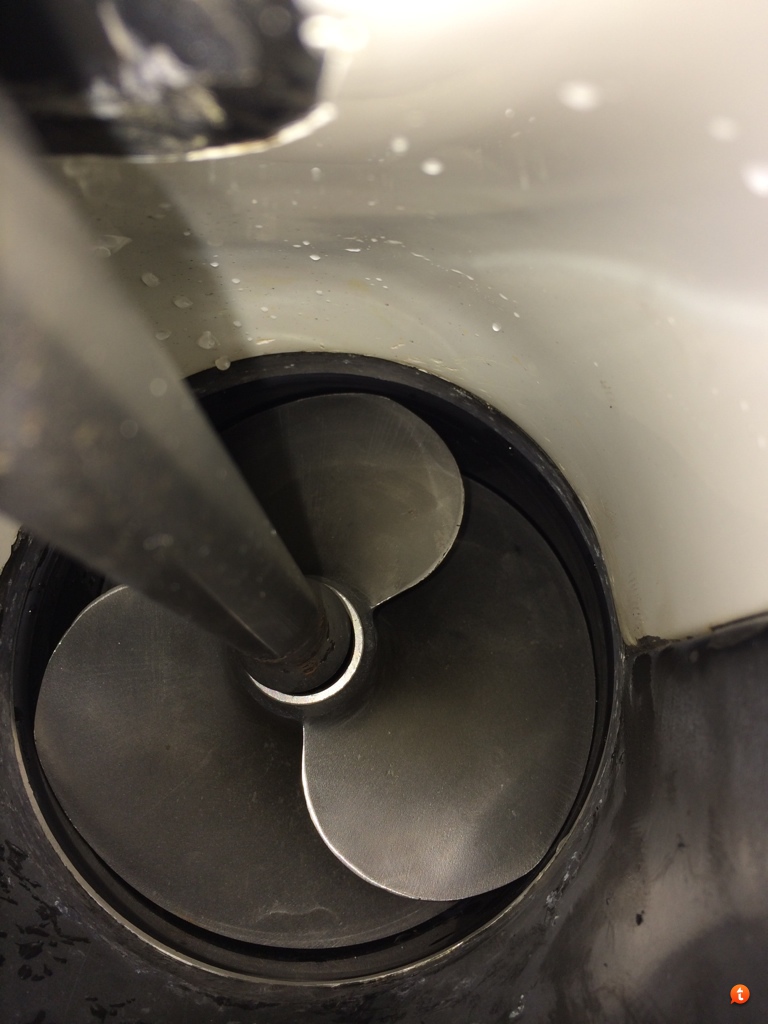

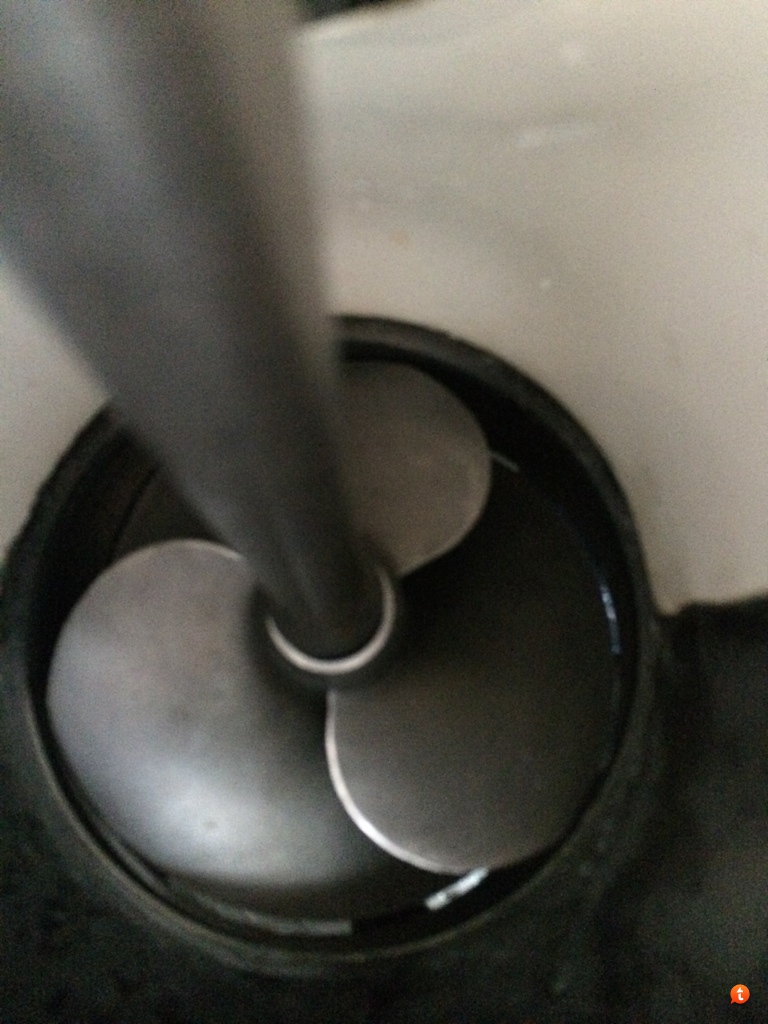

Thanks and [MENTION=68537]Bonmotwang[/MENTION] what is your opinion about my piece of art here


Sent from my iPhone using Tapatalk



[Bonmotwang]

This came over from the PWC forum. You need to pull the pump to figure it out. Get a shop manual and start digging. [MENTION=68537]Bonmotwang[/MENTION] just pulled his, so he will be helpful.

We have a "policeman" now :-D
Do you have a tracking tool?


Sent from my iPad using Tapatalk



[Walid Elbegarmy]

Lolll


Sent from my iPhone using Tapatalk



[Bonmotwang]

Thanks and [MENTION=68537]Bonmotwang[/MENTION] what is your opinion about my piece of art here


Sent from my iPhone using Tapatalk

It is very easy to take off the pump to do a basic inspection. Or go deeper from there if you want to or have to.
This forum has a very good bill of material for your model. From that drawing you can have some ideas about the construction.
To get off the pump you only need to unscrew about 10 screws/nuts and no little parts involved.


Sent from my iPad using Tapatalk



[Bonmotwang]

This is the BOM
http://fiche.seadoowarehouse.com/se...=185&b=17&c=0&d=-PROPULSION-SYSTEM---INTERNAL



Sent from my iPad using Tapatalk



[Walid Elbegarmy]

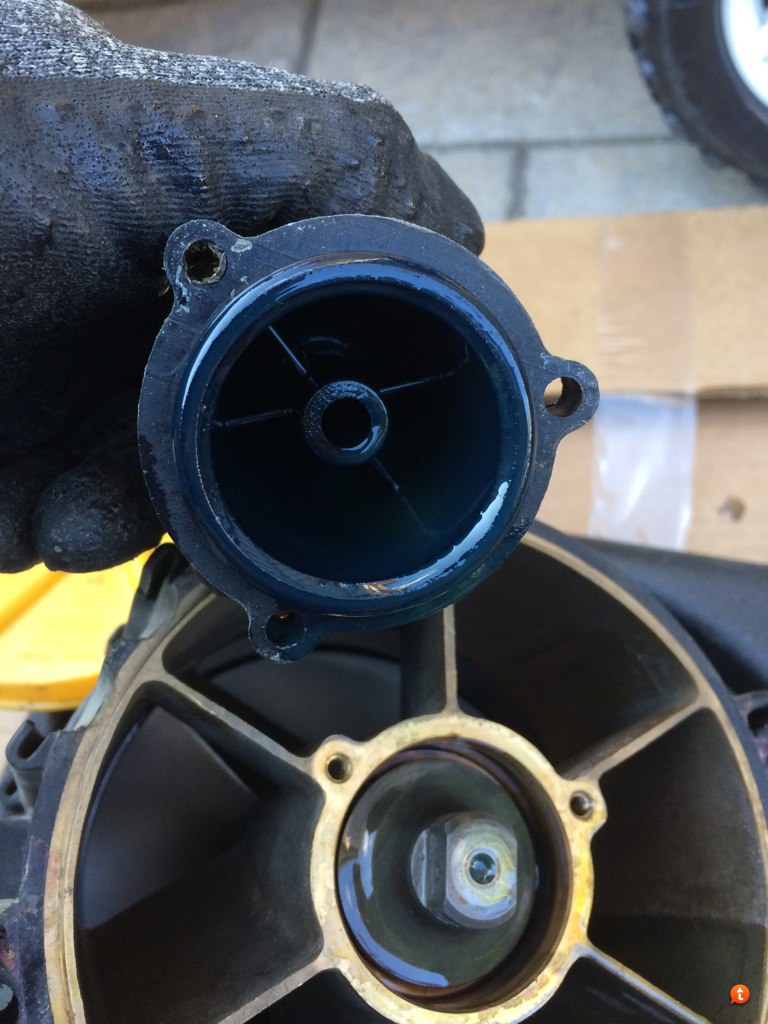

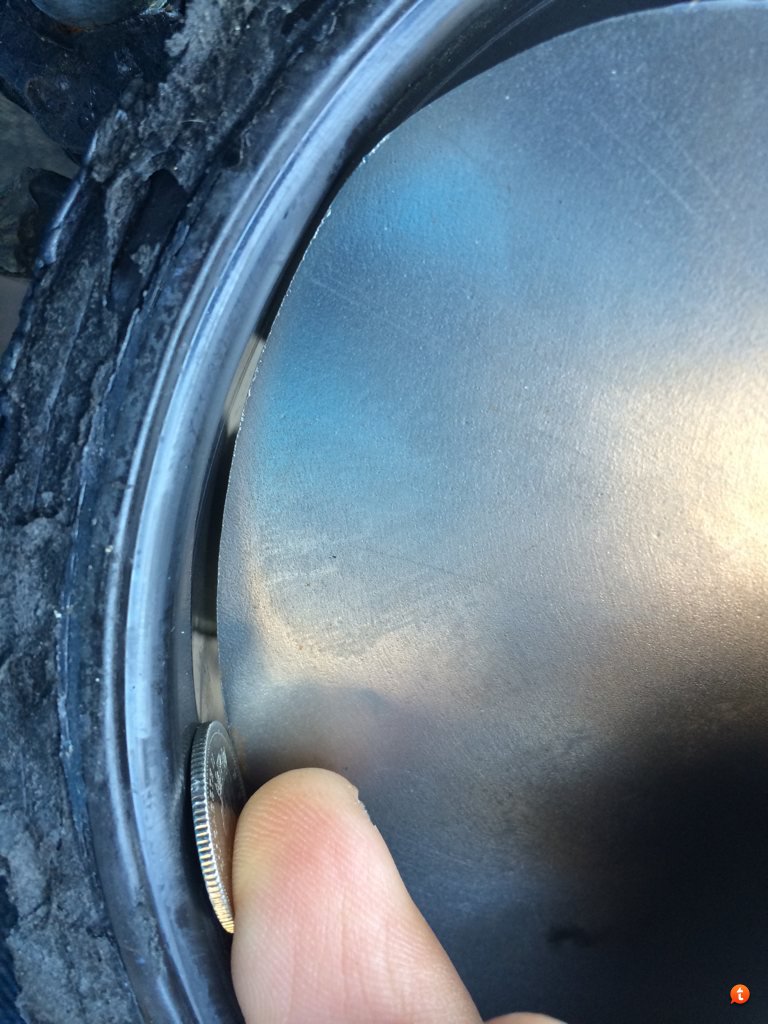

Ok took the pump out and wear ring looks ok, can't slide a dime from the gap and looks new but there is no oil in the pump


Sent from my iPhone using Tapatalk



[Walid Elbegarmy]

Sent from my iPhone using Tapatalk



[Bonmotwang]

So the plastic cone is off?
And when you turn the impeller by hand, can you reproduce the grinding noise?

Sent from my iPhone using Tapatalk



[Walid Elbegarmy]

Sent from my iPhone using Tapatalk



[Walid Elbegarmy]

No grinding noise but no oil at all only few drops


Sent from my iPhone using Tapatalk



[Walid Elbegarmy]

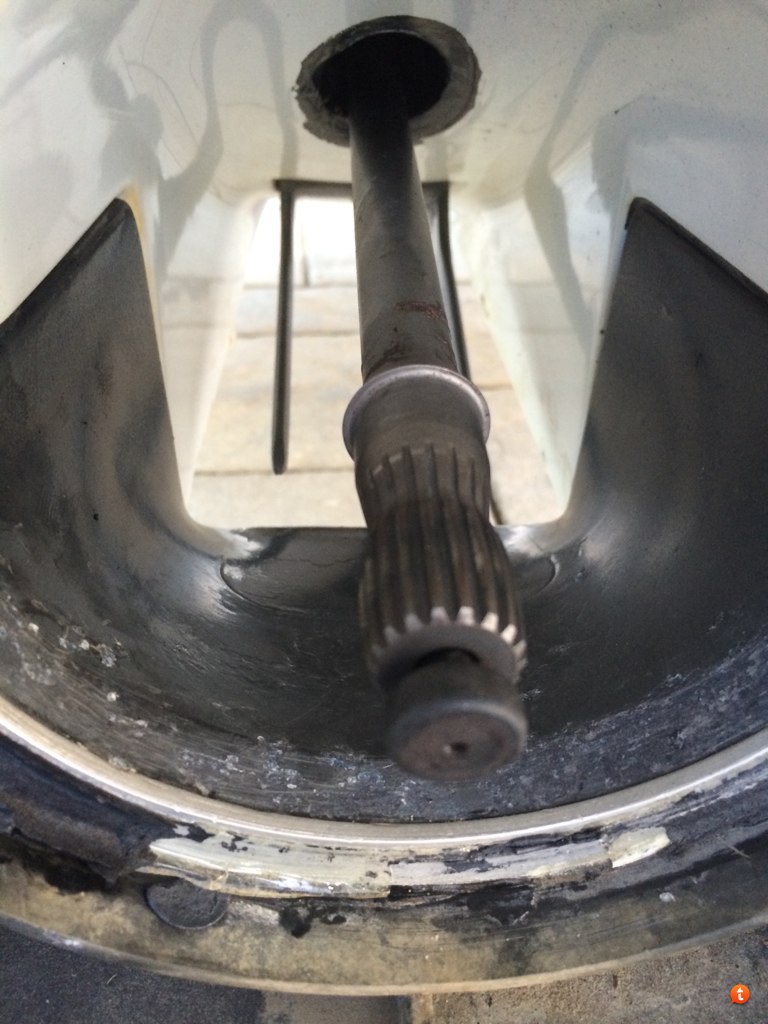

And the shaft is playing like it's lose from the boot, is that normal


Sent from my iPhone using Tapatalk



[Walid Elbegarmy]

Sent from my iPhone using Tapatalk



[Bonmotwang]

Axial play is normal. But shouldn't be too much of radial play.


Sent from my iPhone using Tapatalk



[Walid Elbegarmy]

Can I crank the engine while the pump out and the shaft still connected to listen if the grinding still there?


Sent from my iPhone using Tapatalk



[Bonmotwang]

No. The shaft will have no support at the end. But you can turn over the fly wheel by hand to feel the grinding. remove the spark plugs first, otherwise it won't turn over because of the compression.


Sent from my iPhone using Tapatalk



[Walid Elbegarmy]

Should this be ok
http://www.youtube.com/watch?v=hLA3Ybvgcac


Sent from my iPhone using Tapatalk



[Bonmotwang]

Mine was not that loose. But I cannot tell how much mighty force you were using in the video.


Sent from my iPhone using Tapatalk



[Bonmotwang]

Just back to the grinding sound. I hope you can reproduce the noise on the pump you just took off.
When you turn the impeller by hand you cannot feel anything grinding at all? how about push the pump shaft from the cone side and turn the impeller?



[Walid Elbegarmy]

http://www.youtube.com/watch?v=m8AOLoz45cs


Sent from my iPhone using Tapatalk



[Bonmotwang]

http://www.youtube.com/watch?v=m8AOLoz45cs


Sent from my iPhone using Tapatalk

I did this type of the wiggle before, but no, I didn't that much of play.



[Walid Elbegarmy]

http://www.youtube.com/watch?v=XFfWnOpXuMA


Sent from my iPhone using Tapatalk
