Good wiring diagram

[Colseadoo1955]

I have a 1997 GSI and need a good diagram that shows the clear circuit(s) for the fuses in the center of the MPEC unit. The 3rd fuse from the bottom is blown and the machine won’t start and acts like a dead battery. I cannot seem to find a decent diagram for this anywhere online. Help appreciated.



[Countryboy88220]

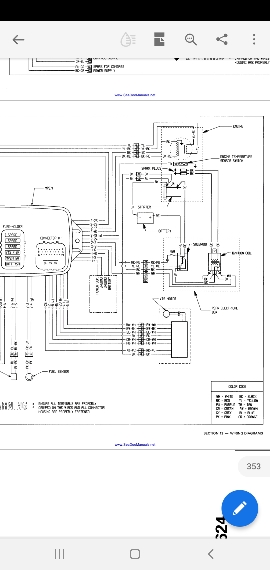

Is this what you were needing?



[Countryboy88220]

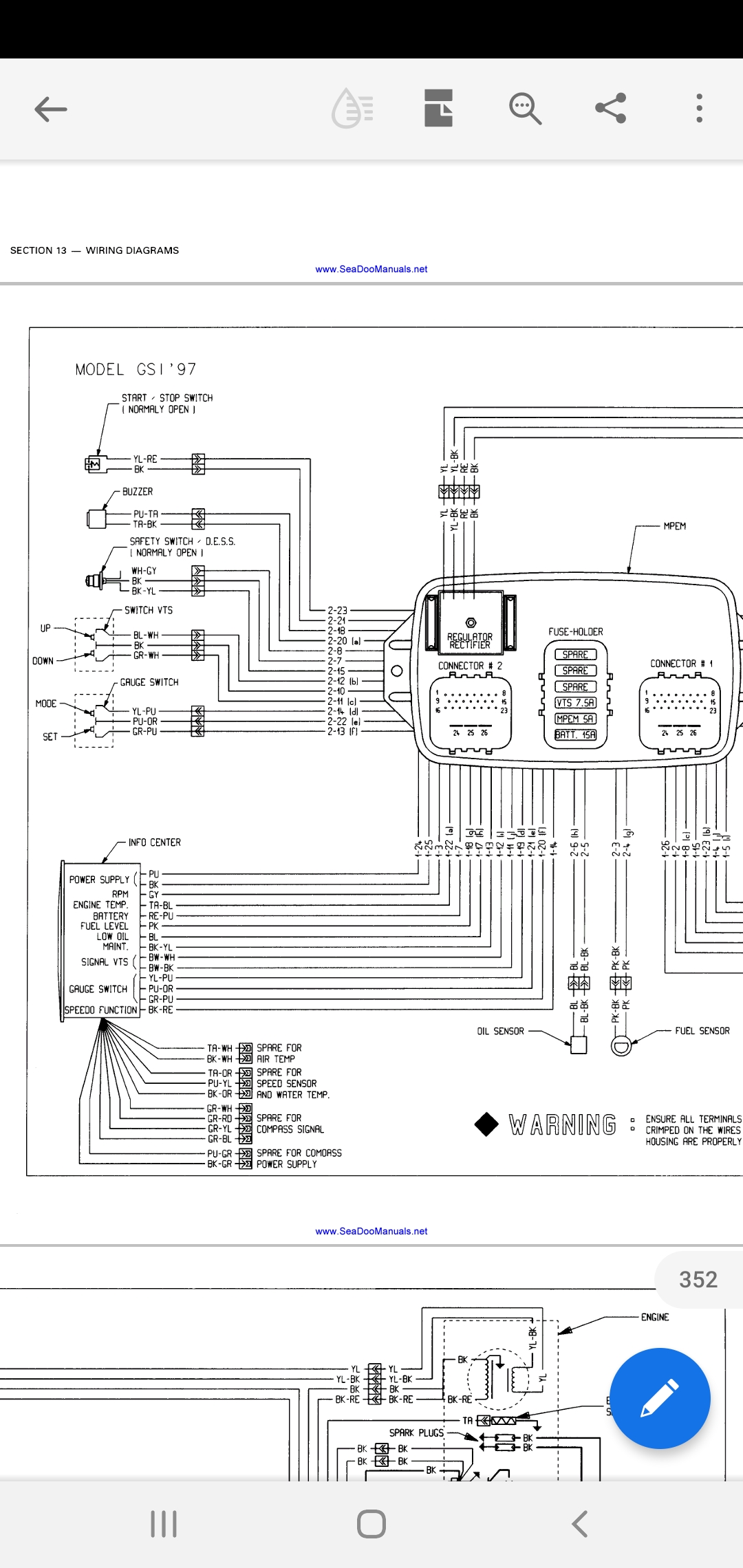

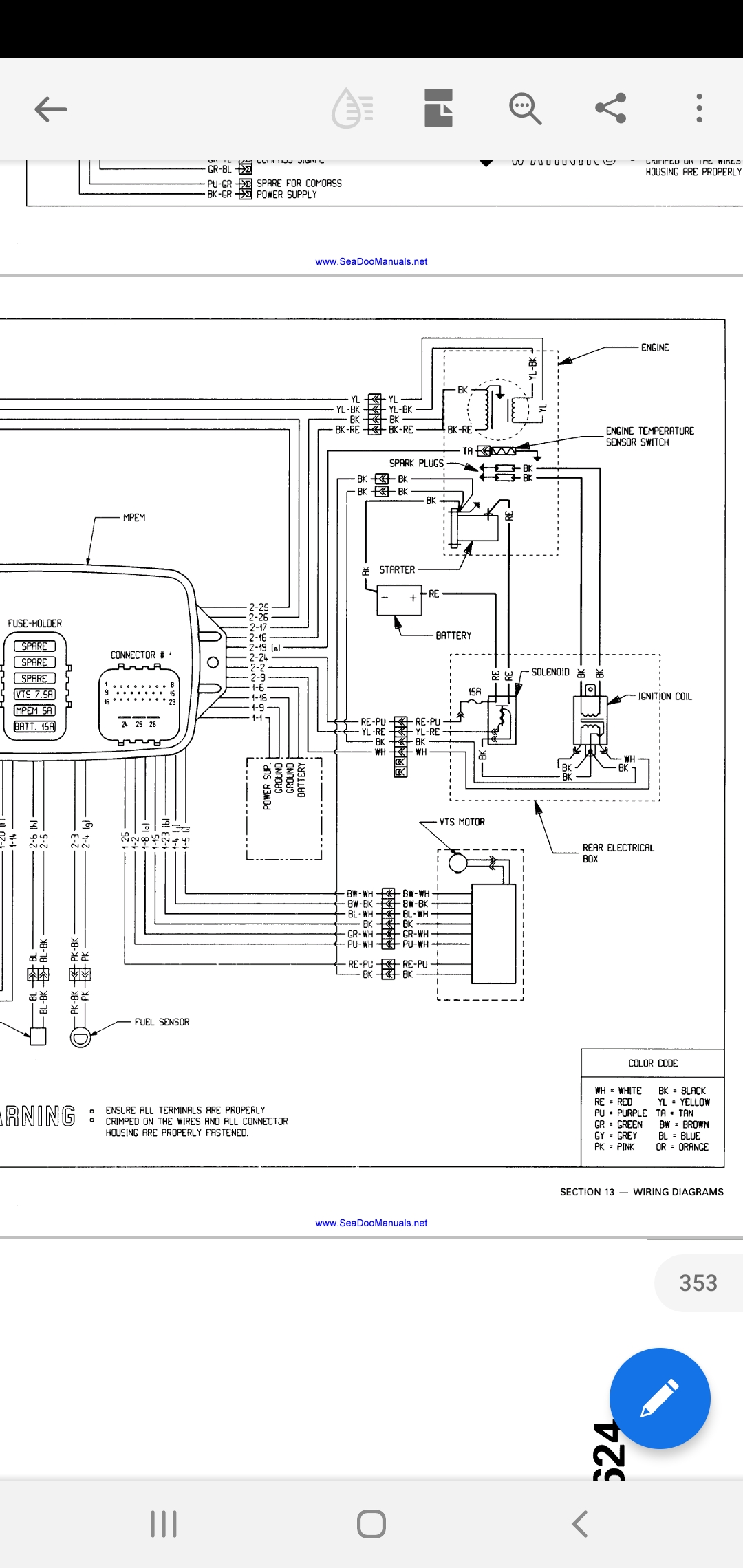

Let's try again those Couldn't be read.



[Colseadoo1955]

Great! Very helpful. The fuse I thought was causing my no start is only for the VTS. I have a no beep no start after just having a new lanyard safety switch programmed and new red start stop switch installed. Weird thing is it started and ran fine in my garage with the water hose hooked up(?).



[Colseadoo1955]

I noticed several references on these Seadoo forums about a second small ground wire. I couldn't see where I had one and the wiring diagram for the GSI doesn't reflect one. It shows the main ground being hooked directly to the starter. I'm wondering about that connection which I cannot see as it's under the exhaust manifold. It started fine in the garage two weeks ago. Nothing when I finally launched it at the lake. Advice anyone?
